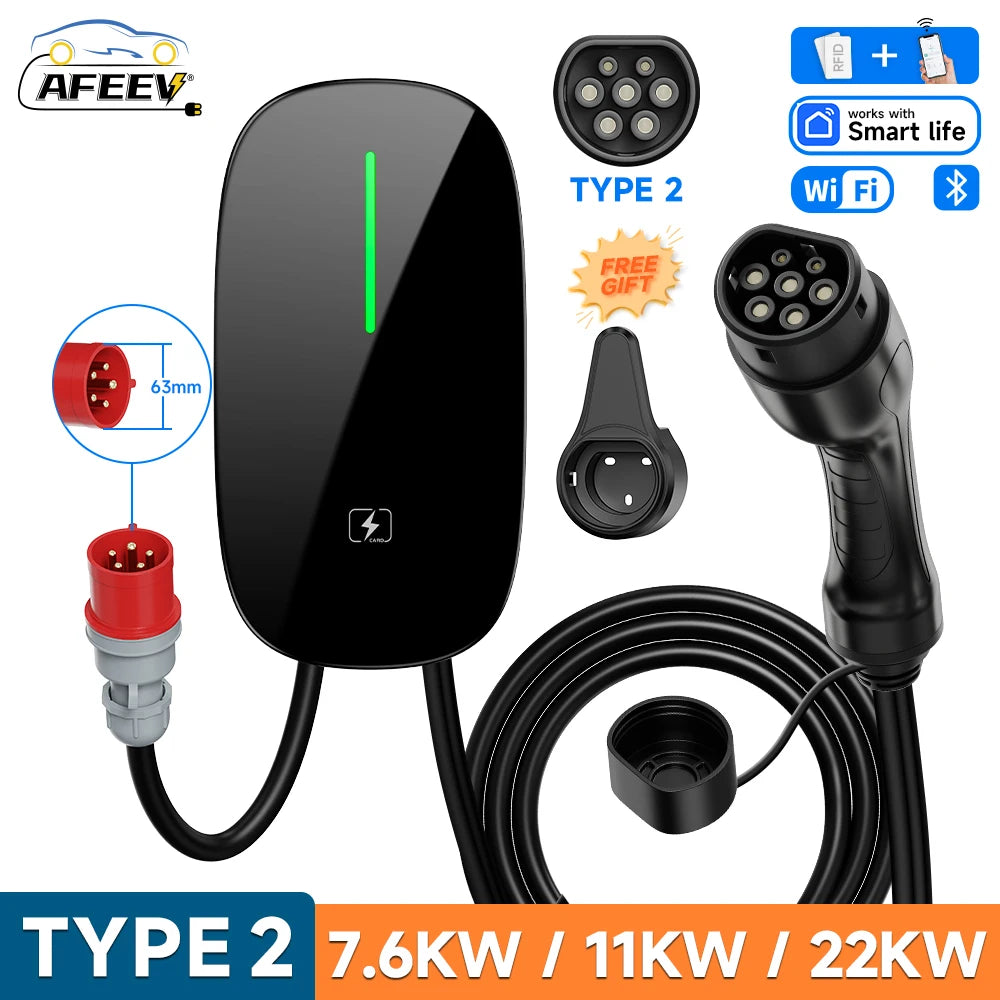

AFEEV 7.6/11/22KW EV Charging Station Type2 IEC 62196-2 Electric Car Charger 32A EVSE Wallbox Wallmount Charger APP Control

AFEEV 7.6/11/22KW EV Charging Station Type2 IEC 62196-2 Electric Car Charger 32A EVSE Wallbox Wallmount Charger WiFi APP Control

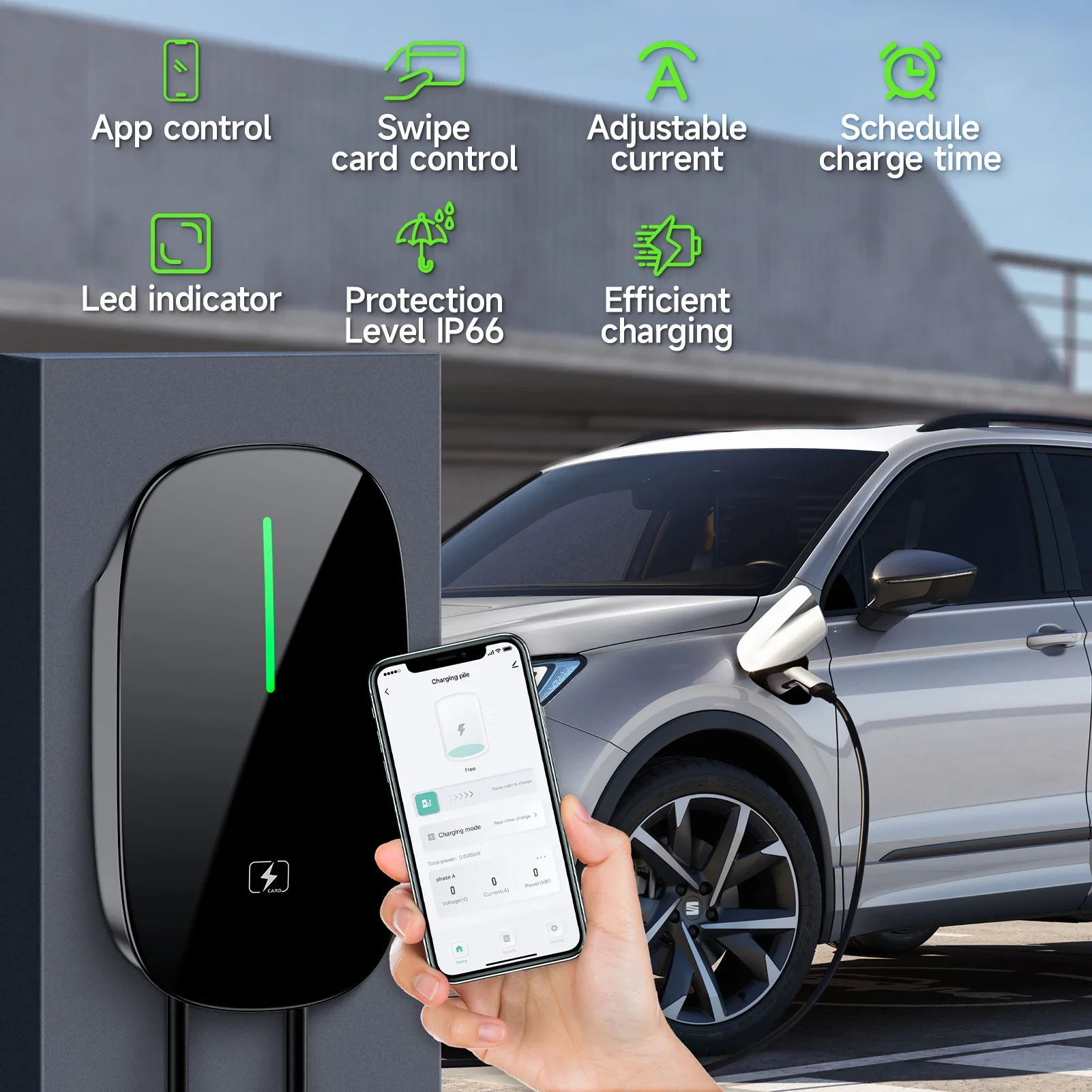

Remote control: via the Smart Life app, you can control the wallbox/charging station in the easiest and most effective way, e.g. monitor charging, set start or stop of the charging process, determine charging power or charging current, read charging data records and so on. The mobile application is free and can be accessed via the App Store and Google Play, valid for Android and IOS.

Faster Charging Speed: Our EV charging station features capacity for 7.6kw/11kw/22kw model as per your car requirements. Faster charging at home is simple and convenience.

Smart and Intelligent EV Charger: Designed with an intelligent chip which will monitor all the conditions during the charging process including the voltage, vurrent, charging time and power consumed.

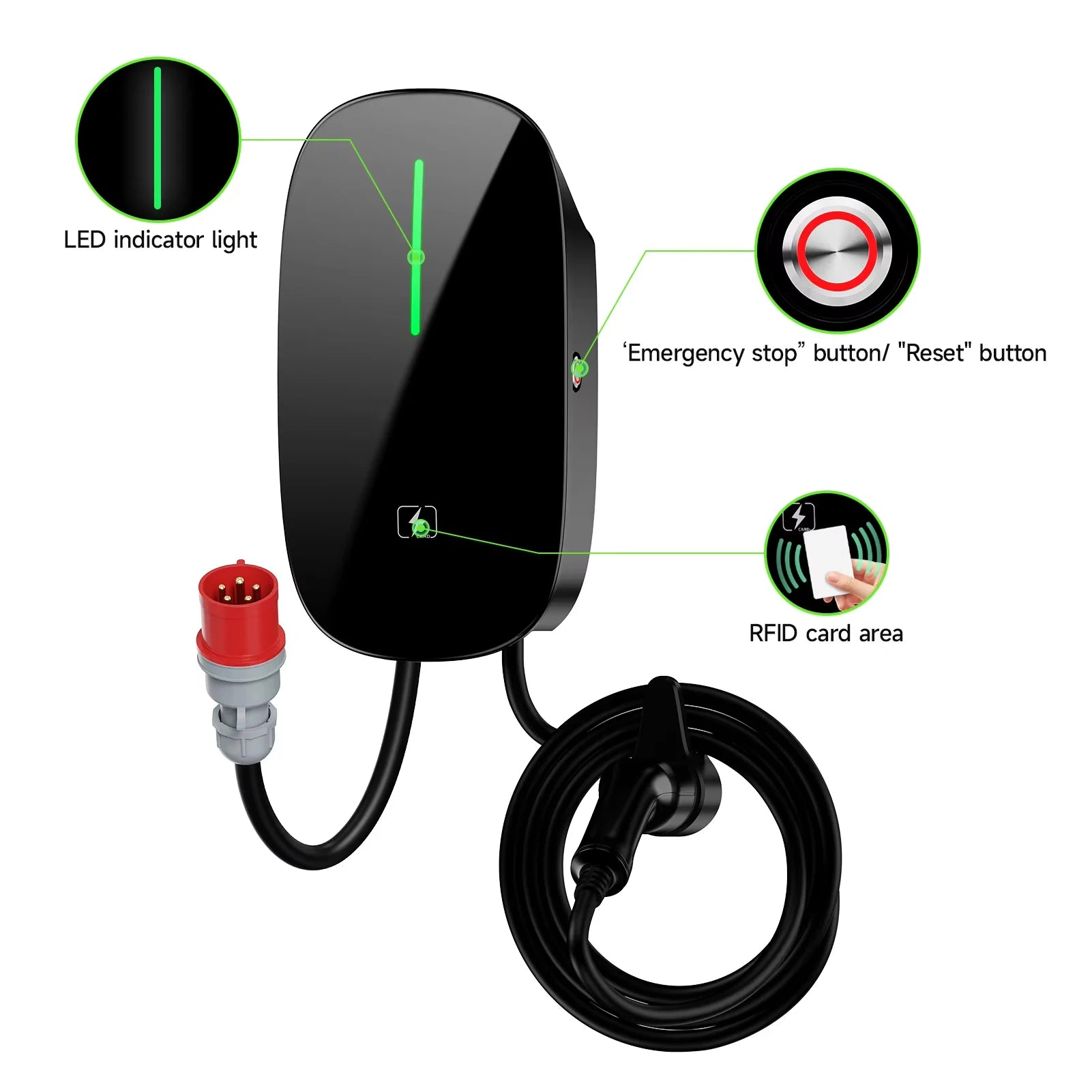

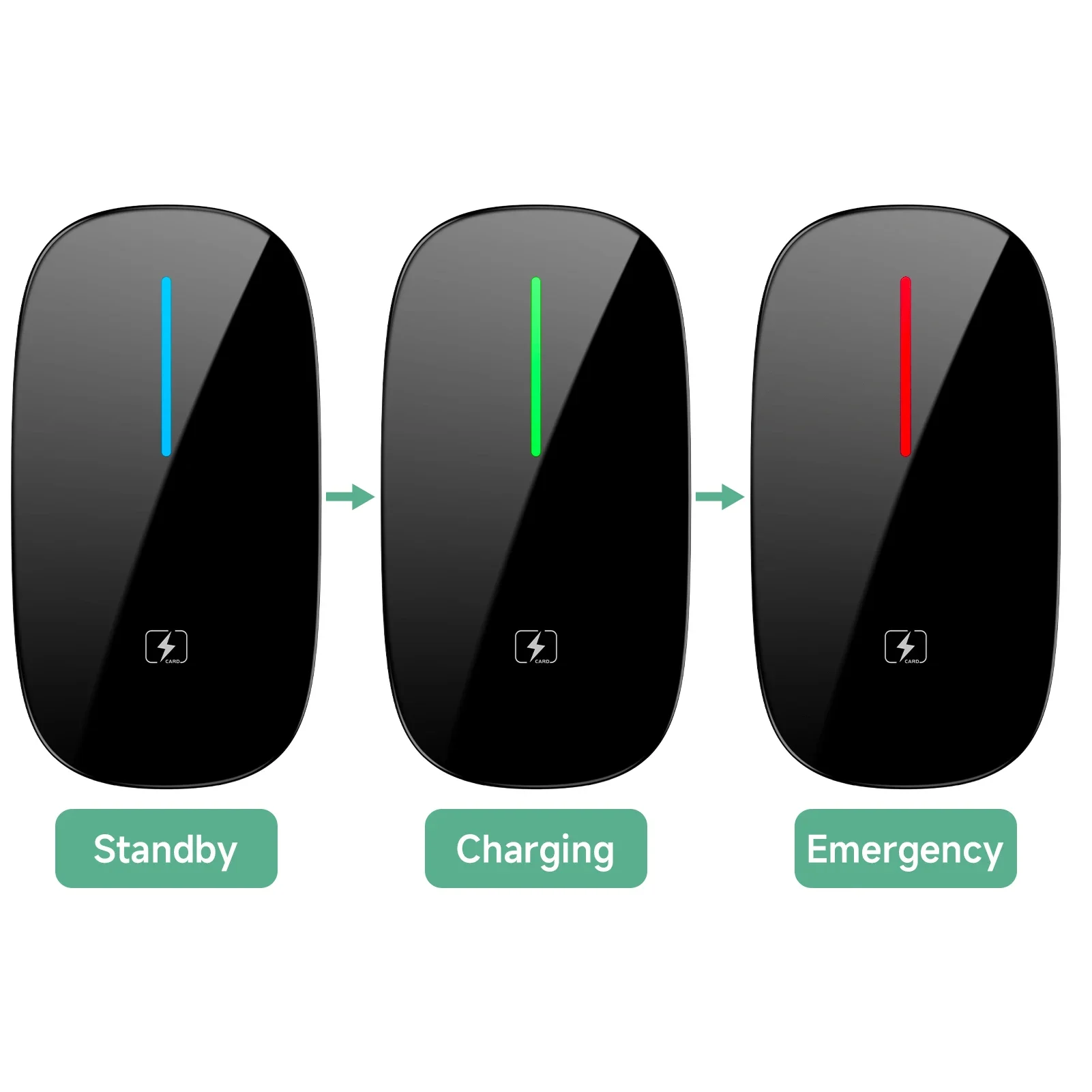

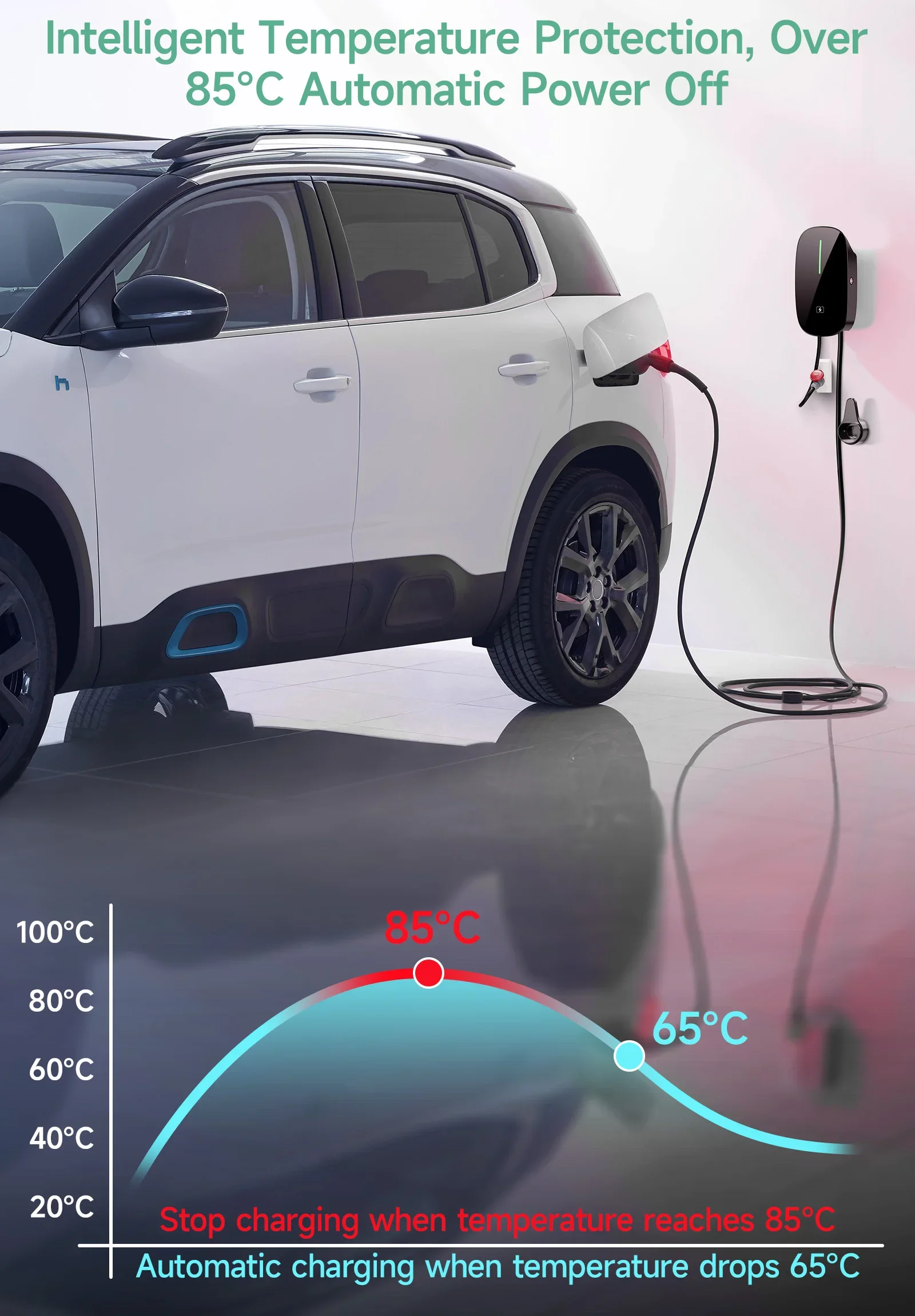

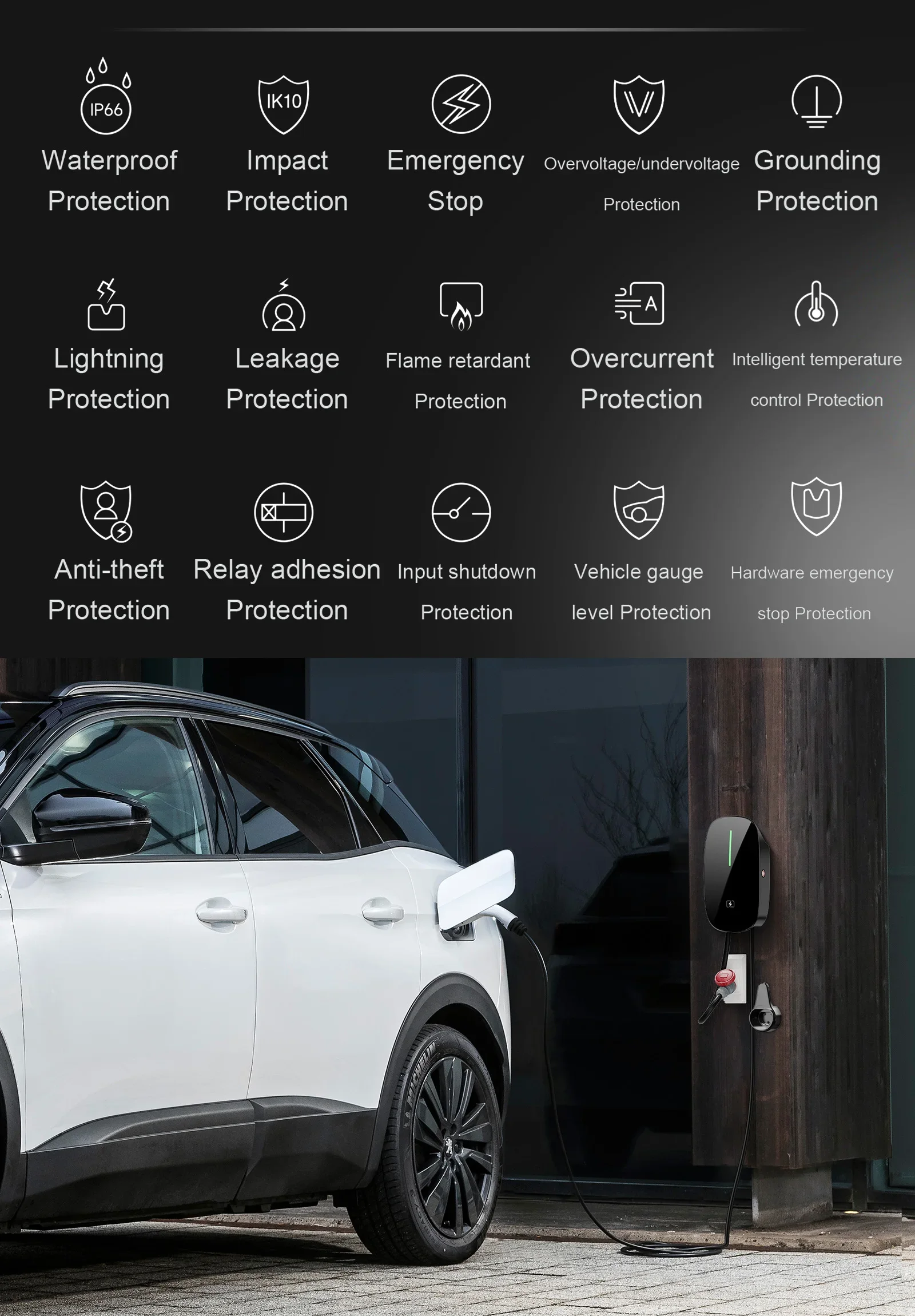

Multiple Protection: The EVSE providing lightning-proof, loeakage, overvoltage, overheat, IP66 rating waterproof, UL94V-0 rating flame resistance and overcurrent protection for your safety. Also it features control box with LED charge status indicators help you identify EV charger's working condition.

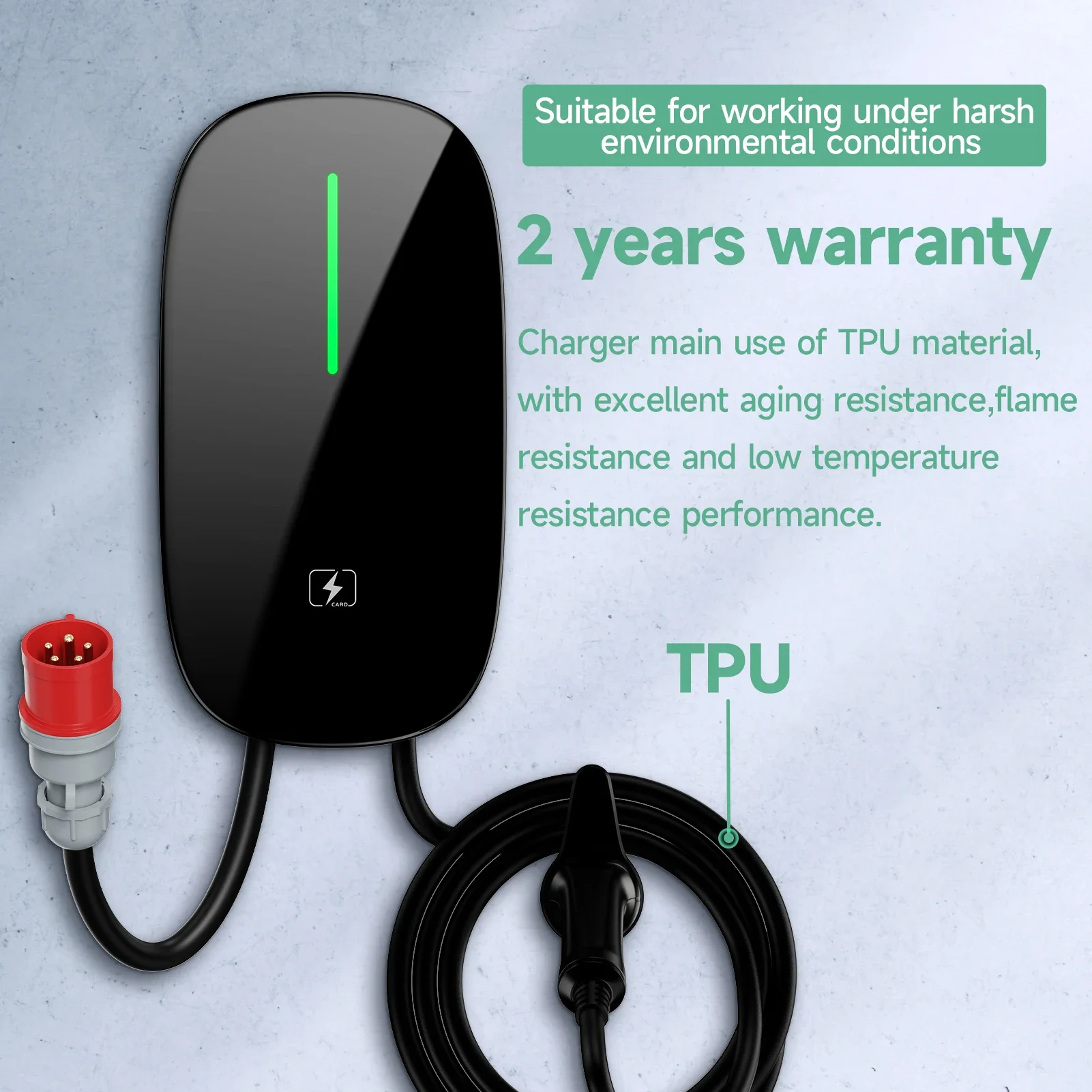

Quality Guarantee: Provide 2 years warranty. If there are any issues with the charger during this period, you can consult us at any time. We have a professional after-sales team to help you solve any problems and ensure your long-term normal use.

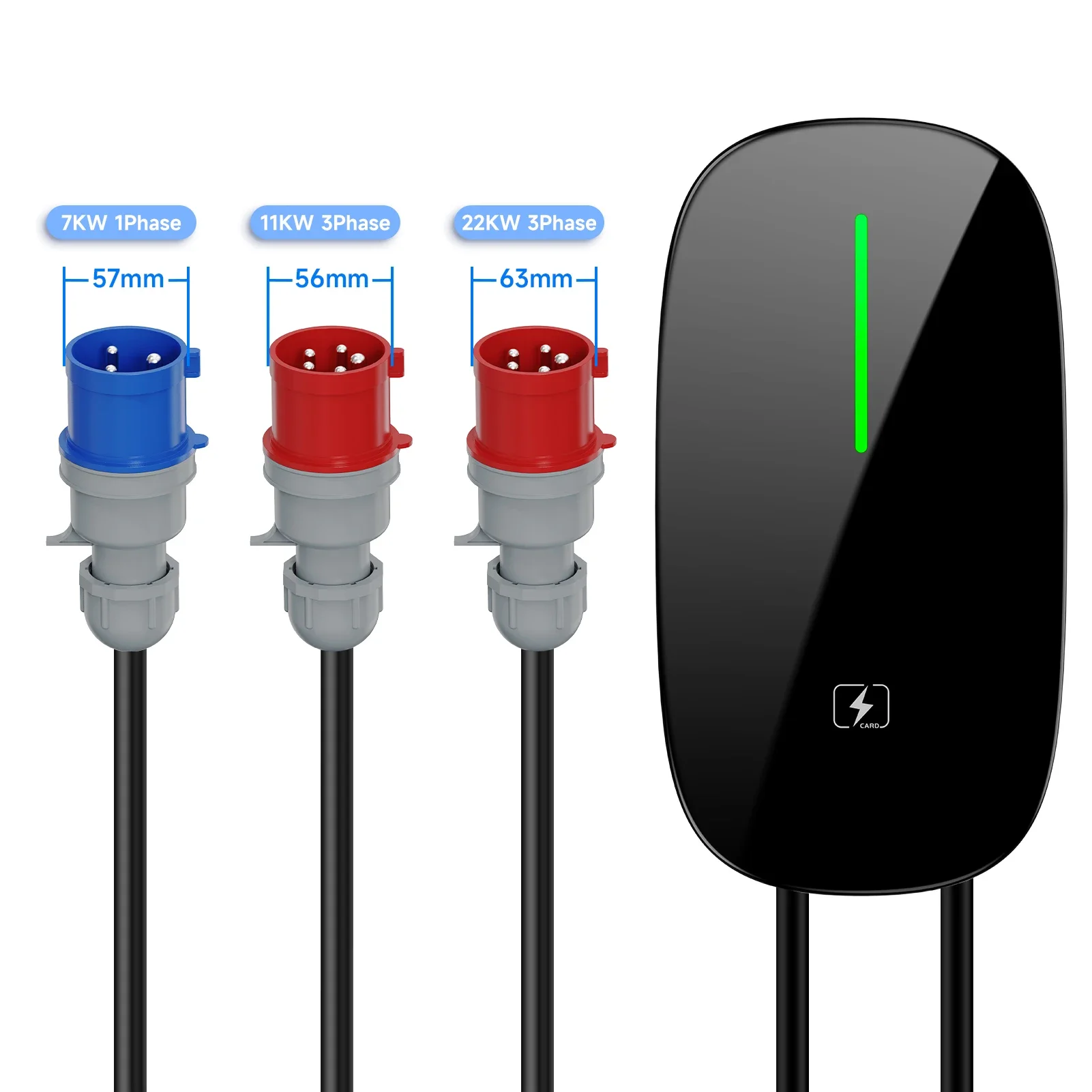

7.6KW 32A 1Phase:

Charging Type: Type2 IEC 62196-2

Power: 7.6KW

Phase: 1Phase

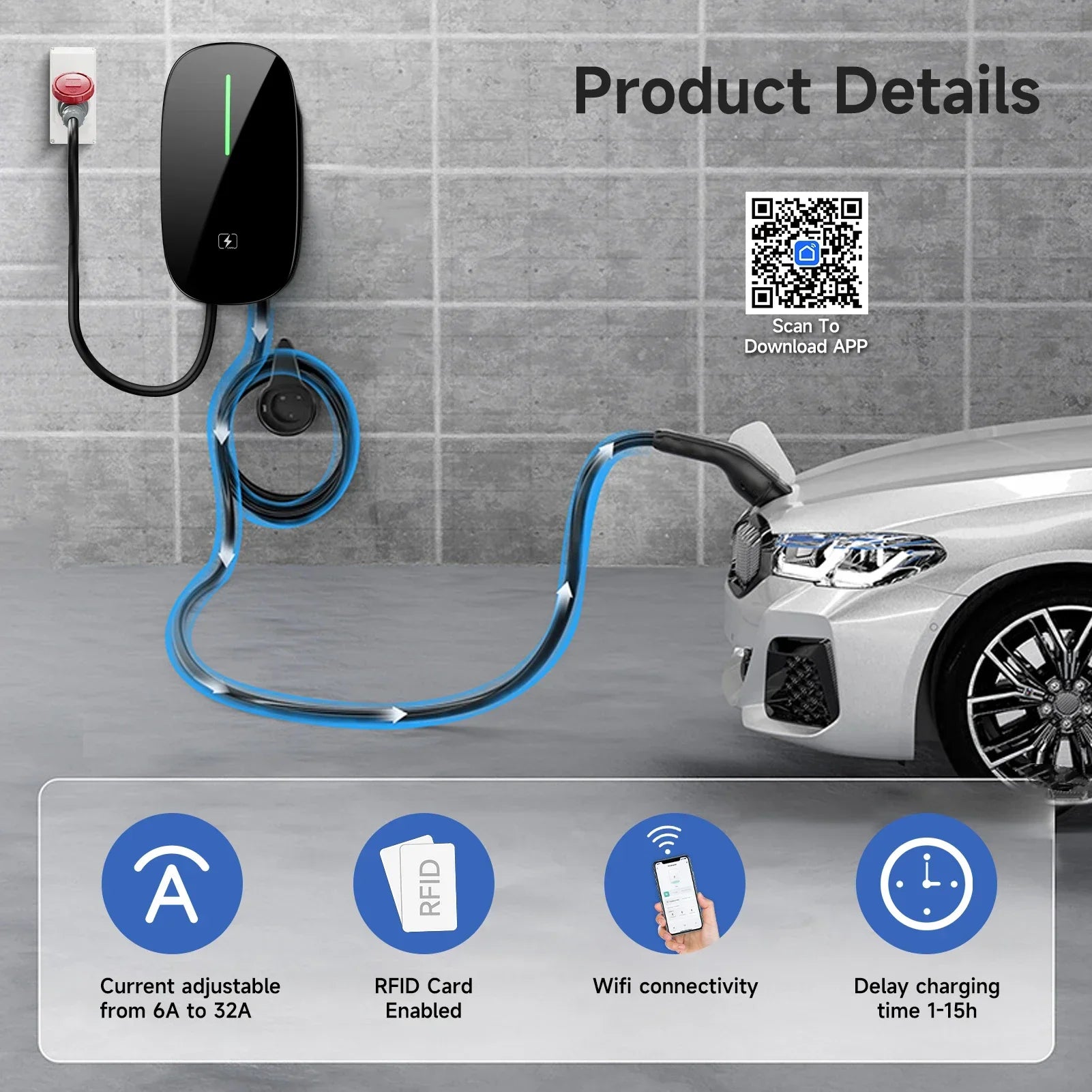

Charging Current: 8A/10A/13A/16A/20A/24A/32A adjustable

Voltage: 110V~250V

Cable Standards: 3G 6mm²+1×0.5mm²

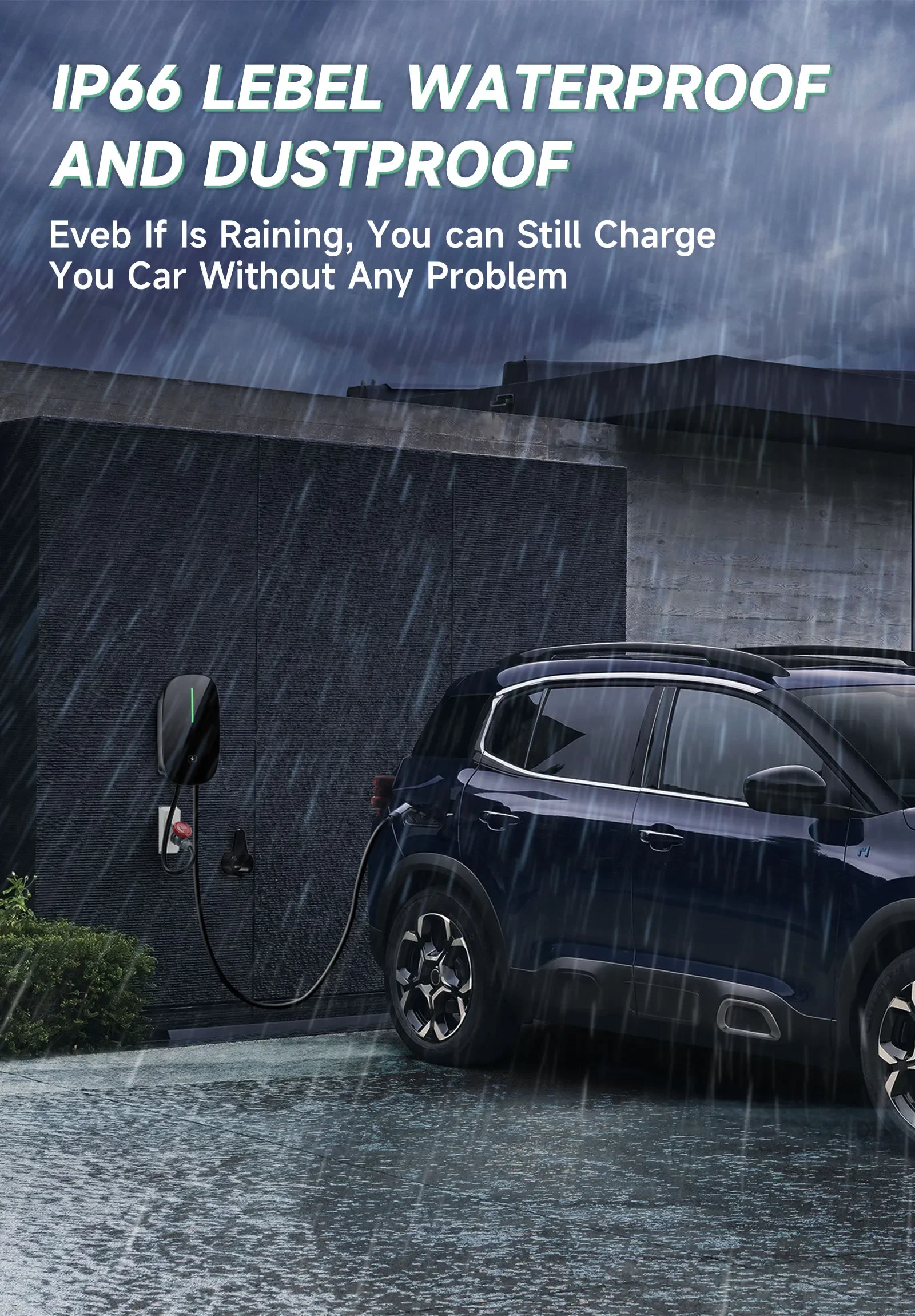

Protection Degree: IP66

Operating Temperature: -30℃ ~ +50℃

Total Length: 5 meters

Charging Delay: Up to 15 hours

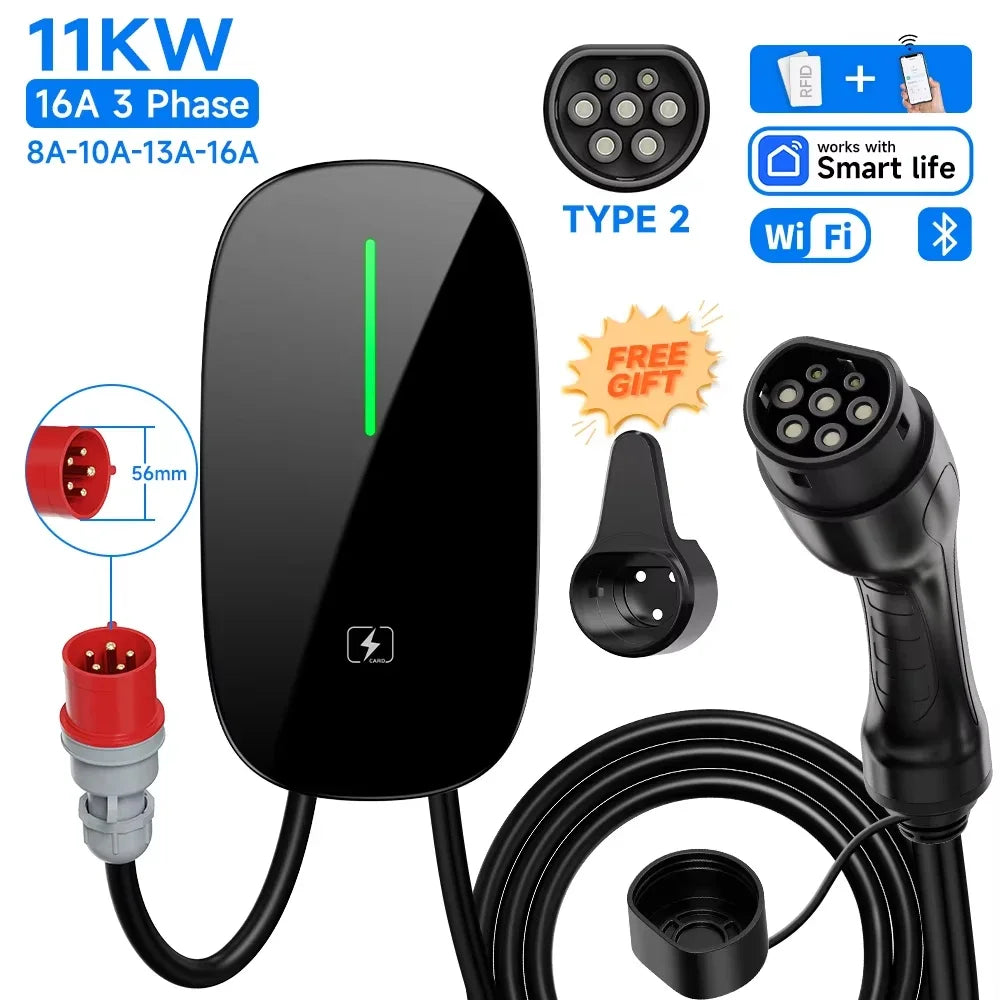

11KW 16A 3Phase:

Charging Type: Type2 IEC 62196-2

Power: 11KW

Phase: 3Phase

Charging Current: 8A/10A/13A/16A adjustable

Voltage: 380V~ 440V

Cable Standards: 5G 2.5mm²+1×0.5mm²

Protection Degree: IP66

Operating Temperature: -30℃ ~ +50℃

Total Length: 5 meters

Charging Delay: Up to 15 hours

22KW 32A 3Phase:

Charging Type: Type2 IEC 62196-2

Power: 22KW

Phase: 3Phase

Charging Current: 8A/10A/13A/16A/20A/24A/32A adjustable

Voltage: 380V~ 440V

Cable Standards: 5G 6mm²+1×0.5mm²

Protection Degree: IP66

Operating Temperature: -30℃ ~ +50℃

Total Length: 5 meters

Charging Delay: Up to 15 hours

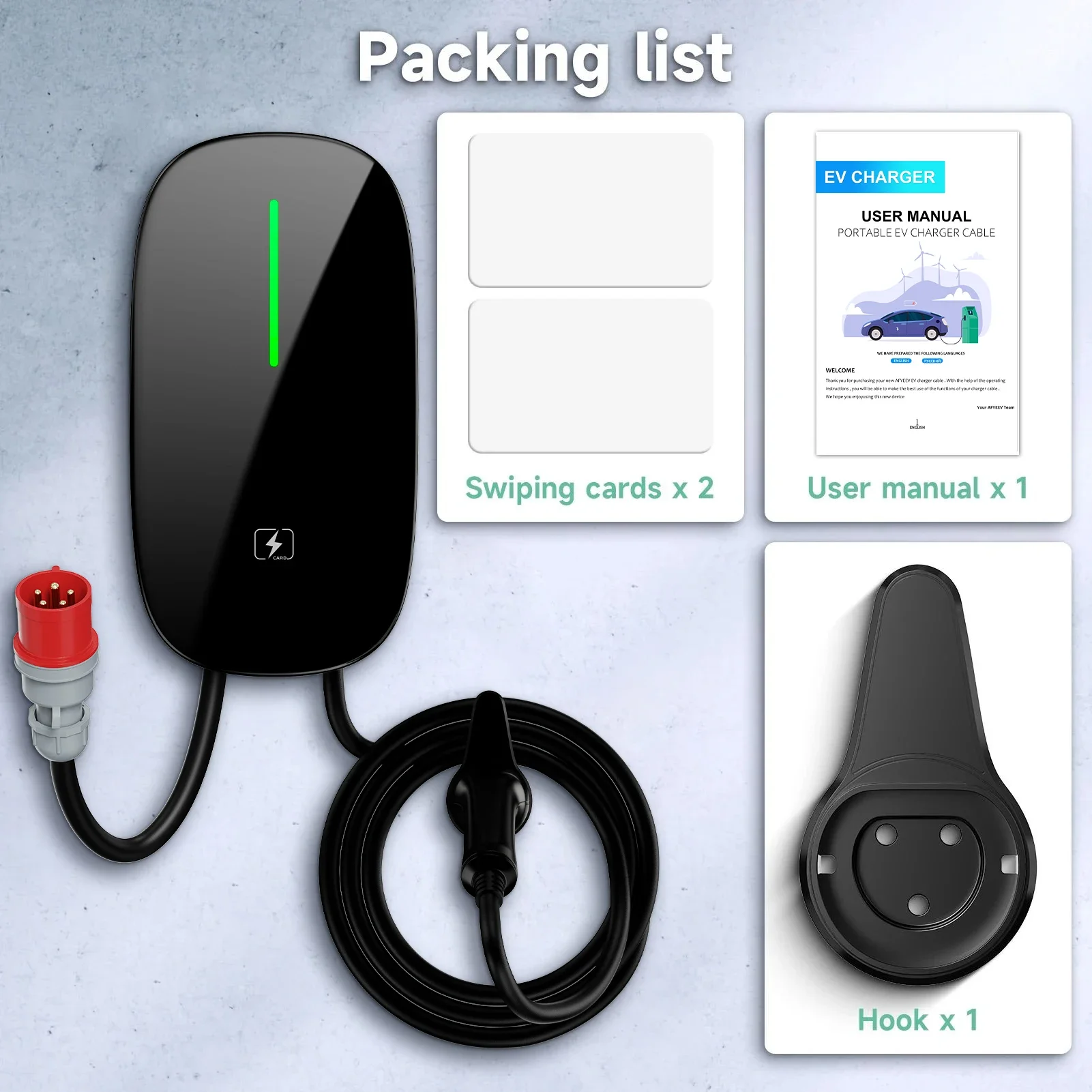

EV Charging Station*1

Swiping cards*2

Hook*1

User manual*1
